`Advanced Helpdesk - General

MRI Evolution provides two Helpdesk windows; the standard Helpdesk and Advanced Helpdesk. The additional options provided by the Advanced Helpdesk allows the User to log a call and manage the Task through its full life. The Advanced Helpdesk screen is also used to manage PPM (Planned Maintenance) Tasks.

Task Management > Advanced Helpdesk

The link will open the Advanced Helpdesk.

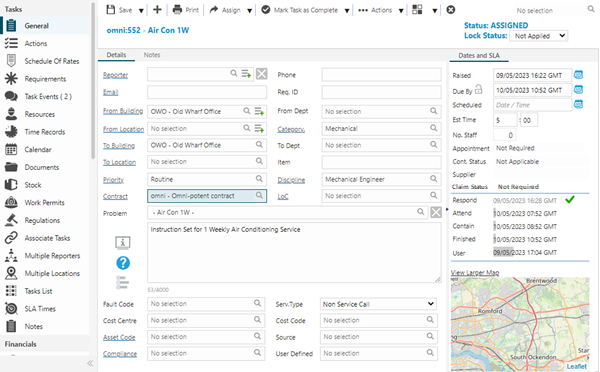

Advanced Helpdesk - Details tab

Click to view more detail.

Available from 5.7.0.0

The Details tab label can be updated using translation strings.

Field Name	Description
Reporter	The name of the person reporting the Breakdown - this field will form a drop down linked to the Contacts, the information can also be free typed.
Phone	The phone number of the person logging the Breakdown - if a reporter has been picked from the Contacts List this field may pre-fill, the information can also be free typed.
Email	The Email address of the person reporting the Breakdown - if a reporter has been picked from the Contacts List this field may pre-fill, the information can also be free typed.
Req. ID	Free text fields that can be used for a customer reference.
Building	From the drop down select the Building where the Breakdown has occurred - if a Reporter has been picked from the Contacts List this field may pre-fill - for more information see Building Register.
Department	From the drop down select the Department that the Reporter is part of - if a Reporter has been picked from the Contacts List this field may pre-fill - for more information see Departments.
Location	From the drop down select the Location where the Breakdown has occurred - this list will be filtered by the Building selected, if a Reporter has been picked from the Contacts List this field may pre-fill - for more information see Location Register.
Category	From the drop down select the Task Category
Item	Free typed field, typically used to enter the 'thing' that is being moved by a Resource from point A to point B as part of an Integrated Services Task.
Priority	From the drop down select the Priority
Discipline	From the drop down select the Discipline
Contract	From the drop down select the Contract - this will be filtered by the Category, Priority and Building selected, for more information see Contracts. Available from 6.0.1.0 Users will not be able to select a Contract with a Contract Type of Triage Only. Tasks may have been set with a Triage Only Contract as part of the Triage Contract Process Flow For Saving Tasks. Users will be able to change the Contract to a non Triage Only Contract. They will not be able to set a different Triage Only Contract or re-select the same Triage Only Contract. Available from 6.4.0.0 Selecting a Contract will set the Task's Currency to be that of the selected Contract.
LoC	From the drop down select the Level Of Completion (Level of Completion) for the Task.
Problem	Either select a problem code from the drop down list or free type a short description of the Task. If using the drop down, selecting the problem code first will auto-populate the Category, Priority, Discipline and Contract (dependant on Contract Views). If any or all of these have been pre selected the list of available problem codes will be filtered.
Description	The longer description of the Task.
Fault Code	From the drop down select the Fault Code for the Task - for more information see Fault Codes. Available from 5.7.0.0 The Fault Code field will be automatically populated with the default Fault Code of the Instruction Set selected in the Problem field, if it has one. If the Problem field is changed to a different Instruction Set and the new Instruction Set has a different default Fault Code, the Fault Code will automatically change to the default Fault Code of the new Instruction Set.
Serv. Type	From the drop down select the Service type for the Task - the default value is "Non Service Call"
Cost Centre	From the drop down select the Cost Centre for the Task - this will be filtered by the selected Contract and Asset -for more information see Cost Centres. Available from 6.1.0.0 Cost Centres that have a Historic or Suspended state are excluded from this list. In addition to any Contract View restrictions applied to Cost Centres for the Contract related to this entity, this field may be additionally filtered to show only those Cost Centres that have been assigned to the related Building. If a Cost Centre that's assigned to the related Building is set as the default for the Building it will be set automatically in this Cost Centre auto-complete. Note: If the user subsequently changes the related Contract, where the selected Cost Centre is not available, the Cost Centre value (and Cost Code if selected) will be cleared.
Cost Code	From the drop down select the Cost Code for the Task - this will be filtered by the selected Cost Centre - for more information see Cost Codes. Available from 6.1.0.0 Cost Codes marked as Locked against the Cost Centre are excluded from this list.
Asset Code	From the drop down select the Asset that has broken down, this will be filtered by the Building, Cost Centre and Location (Location will on be filtered if the Tasks User Preferences have been turned on).
Source	From the drop down select the Caller Source.
Compliance	From the drop down select the Compliance Type - if Instruction Sets are being used in the problem code this may auto-populate, for more information see Compliance Types.
User Defined	From the drop down select from the User Defined Lookup list.

Click to open a page showing the Breakdown detail of the Task

Click to open a page showing the Instruction Steps

Click to open a page showing the results of a submitted Service Request Survey for Tasks created in the MRI Dreamscape @yourService app. The icon is only displayed if the MRI Dreamscape At Your Service Purchase Key is present. Available from 5.5.1.0

Advanced Helpdesk - Notes tab

Click to view more detail.

Available from 5.7.0.0

The Other tab has been renamed Notes. The Notes tab label can be updated using translation strings.

Field Name	Description
Task Seq	The Task sequence number. Note: Available from 5.3.0.0 the Task Sequence details were moved to the Notes tab
Class	The Class of the Task - Breakdown, PPM, Project or Scheduled Task. Note: Available from 5.3.0.0 the Class details were moved to the Notes tab
Logged By	The User who logged the Task. Note: Available from 5.3.0.0 the Logged By details were moved to the Notes tab
Created	The date / time the Task was created.
Authorised By	The User who Authorised the Task - Authorisation module must be in use otherwise this will pre populate with the User who logged the Task. Note: Available from 5.3.0.0 the Authorised By details were moved to the Notes tab
Authorised	Auto-populated with the date the Task was authorised - Authorisation module must be in use otherwise this will pre-fill with the date the Task was logged. Note: Available from 5.3.0.0 the Authoriser details were moved to the Notes tab
Invoiced	Auto-populated to indicate if the Task has been invoiced - Invoice Module required. Note: Available from 5.3.0.0 the Invoiced details were moved to the Notes tab
H & S	Check the box if the Task is related to health and safety. Note: Available from 5.3.0.0 the H & S check box was moved to the Notes tab
Finished	Auto-populated with the date the Task was finished.
Signed Off	Auto-populated with the date the Task was signed off to history.
Notes	Notes about the Task. Note: Available from 5.3.0.0 the Notes tab was renamed to Notes tab, Notes can also be accessed from the Notes sub navigation
Fault Code	From the drop down select the Fault Code for the Task - for more information see Fault Codes. Note: This is the same field described in the Advanced Helpdesk - Details tab
Serv. Type	From the drop down select the Service type for the Task - the default value is "Non Service Call". Note: this is the same field described in the Advanced Helpdesk - Details tab
Cost Centre	From the drop down select the Cost Centre for the Task - this will be filtered by the selected Contract and Asset -for more information see Cost Centres. Available from 6.1.0.0 Cost Centres that have a Historic or Suspended state are excluded from this list. Note: This is the same field described in the Advanced Helpdesk - Details tab
Cost Code	From the drop down select the Cost Code for the Task - this will be filtered by the selected Cost Centre - for more information see Cost Codes. Available from 6.1.0.0 Cost Codes marked as Locked against the Cost Centre are excluded from this list. Note: This is the same field described in the Advanced Helpdesk - Details tab
Asset Code	From the drop down select the Asset that has broken down, this will be filtered by the Building, Cost Centre and Location (Location will on be filtered if the Tasks User Preferences have been turned on). Note: This is the same field described in the Advanced Helpdesk - Details tab
Source	From the drop down select the Caller Source. Note: This is the same field described in the Advanced Helpdesk - Details tab
Compliance	From the drop down select the Compliance Type - if Instruction Sets are being used in the problem code this may auto-populate, for more information see Compliance Types. Note: This is the same field described in the Advanced Helpdesk - Details tab
User Defined	From the drop down select from the User Defined Lookup list. Note: This is the same field described in the Advanced Helpdesk - Details tab

Advanced Helpdesk - Dates and SLA tab

Click to view more detail.

Field Name	Description
Lock Status	From the drop down select the Task Lock Status of the Task - the default state is "Not Applied".
Raised	Auto-populated with the date the Task was raised - this can be manually altered to reflect a Task that should have been raised in the past.
Due By	The date the Task is due by according to its SLA (Service Level Agreement) - this can be manually altered but must then be locked by clicking .
Scheduled	Enter a date for when the Task is scheduled to be completed.
Est Time	Available from 5.3.0.0 Auto-populated from the Instruction Set used to create the Task, this can be manually entered or adjusted
No. Staff	Available from 5.3.0.0 Auto-populated from the Instruction Set used to create the Task, this can be manually entered or adjusted
Appointment	Available from 5.5.0.0 Only visible when Appointments & Visits has been licenced. Read-only field showing the Appointment State of the current Task The Appointment label is be a custom hyperlink that will do one of the following actions: When the Appointment State of the current Task is Not Required - no hyperlink When the Appointment State of the current Task is No Appointment Set - Clicking the hyperlink will open a popup to create new Appointment Request When the Appointment State of the current Task is any other - Clicking the hyperlink will open the Appointment Visit record associated with the current Task
Cont. Status	Available from 5.3.0.0 If Contractor Gateway is in use, the Cont. Status (Contractor Status) will show the status of the Task in Contractor Gateway. Possible options are as follows: Not Applicable Not Sent Never Send Sent to Contractor Removed from Contractor Cancelled
Supplier	Available from 5.3.0.0 If Contractor Gateway is in use, the Supplier field will show the Supplier assigned to the Task.
Claim Status	Available from 6.3.1.0 Auto-populated with the current State value of a Payment Application related to current Task.
Respond	Auto-populated with the respond (time it takes to assign the first Resource) SLA.
Attend	Auto-populated with the attend (earliest start time on time records) SLA.
Contain	Auto-populated with the contain (earliest Contain time on Time Records) SLA.
Finished	Auto-populated with Finish SLA - On completion MRI Evolution will reference either the time the Task was moved to Complete or the latest finish time on the Time Records when the Task was moved to Complete (Depending on how the Contract is set up will depend which of these times MRI Evolution references) .
User	Auto-populated with the user defined SLA.
User Defined Box	The content of the User Defined Box is defined in the User Task Preferences page. It can display either: display a map showing the position of the Building where the current Task is taking place prompt Users with consistent Text e.g. steps for completing a call or a reminder to give out the Task ID before hanging up

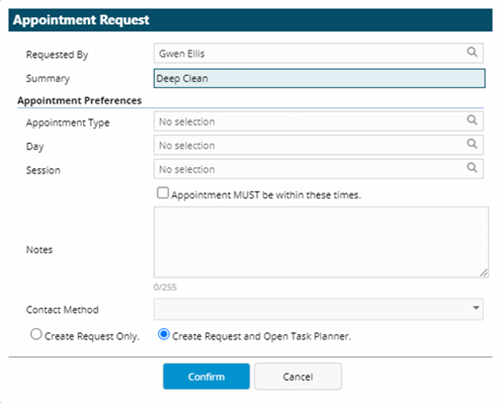

Appointment Request Popup details

Field	Description
Requested By	Automatically populated with the Reporter / Contact selected for the current Task
Summary	Automatically populated with the Problem/Short Description of the current task
Day	List of Calendar Days to choose from
Session	List of Calendar Sessions to choose from
Appointment MUST be within these times	Checkbox to enforce the Appointment falls within the Day and Session selected
Notes	Free format text field to store any pertinent details about the Appointment
Contact Method	Automatically populated using the Contact Preference values of the Reporter / Contact selected for the current Task
Create Request Only \ Create Request and Open Task Planner	Set as 'Create Request Only' on first load. Any changes to this Radio button selection will be stored in the user's system profile to set the same value next time the page is opened.

Advanced Helpdesk - Appointments tab

Click to view more detail.

The Appointments tab will only be displayed where an Appointment has been created against the Task. It contains the information relevant to the arranged Appointment for a Resource to visit a Site, Building or Location in order to carry out work for the Task.

Available from 6.4.1.0

The restriction to hide the Appointments tab when the Appointment Status is Not Required has been removed.

Note: The Appointments tab will not be displayed if the Appointments purchase key isn't present.

Field Name	Description
Appointment	The Summary given to the Appointment
Visit Status	The current Status of the Appointment linked to the current Task
Window Start	The start date/time of the Appointment arrival window
Window End	The end date/time of the Appointment arrival window
Est Start Date	The earliest Estimated Start Date of any Tasks linked to the Appointment
	Request Preferences
Request	The Summary of the Request linked to the current Task
Tasks	The number of Tasks linked to the Request
Day	The preferred Calendar Day for the Request
Session	The preferred Calendar Session for the Request
Contact by	A multi-select drop down to set the preferred contact method for the Request
Notes	Any Notes added to the Appointment are displayed here
Map Panel	Map view using the Open Street maps control showing the position of the Building linked to the current Task. The Building's position is plotted using the Latitude and Longitude values stored against the Building

Advanced Helpdesk - User Defined Box

Complete the fields and click Save .

Note: Not all fields on the Advanced Helpdesk may need to be populated when first logging the Task, as long as the User is on the General sub menu, many of these options can be altered as required.

Once the Advanced Helpdesk has been completed and saved, many sub navigations will appear to allow additional entities to be assigned / created.

Advanced Helpdesk Icons

Icon	Feature	Description
	Create new Task	Click to open the helpdesk in a new window, ready to enter details of a new Task
	Print Job Card	Click to print Job Card - The print window will open. JC-001 PPM Issue Job Card JC-002 Breakdown Job Card PR-004 Project Job Card
	Assign button group	Available from 5.5.0.0 If the Status of the current Task is one of the following, the Assign button group is disabled: Unauthorised Requested Cancelled History Paused - ISM Module only
	Assign Resource	Available from 5.5.0.0 Click the Icon to open the Time Record page and Assign a Resource. Available from 6.2.0.0 If the Auto-Create Task Work Order POs preference is set to On Assignment A Task Work Order Purchase Order will be created automatically for the current Task when the Task Status is changed from Active to Assigned, unless a Purchase Order already exists against the Task. The details of the Purchase Order will depend on the system or Contract preferences for Create Task Work Order PO Lines from Task Actions (if present).
	Open Planner	Available from 5.5.0.0 Click the Icon to open the Resource Planner page. When opened from the Advanced Helpdesk, the Resource Planner will open with the following settings specifically for the current Task: The Tasks Grid at the bottom of the page will display only the current Task Query and Search section will be hidden The column filters will be turned off Personalisation and grid footers will be hidden The page will automatically filter Resources by the current Task The Resources grid will automatically select all Resources so that the Calendar pane is operating in auto-refresh mode The Resource Pane on the left hand side will be collapsed
	Find Nearest	Available from 5.5.0.0 Click the Icon to open a map popup displaying Resource's proximity to the current Task and Assign a Resource.
	Open Rota Window	Available from 5.5.0.0 Click the Icon to open the Resource Rota page and Assign a Resource.
	Upload Document	Available from 5.5.0.0 Click the Icon to open the Document page in order to add a new Document to the Task.
	Add Event	Available from 5.5.0.0 Click the Icon to open the Task Event page in order to add a new Event to the Task.
	Assign CSF	Available from 5.5.0.0 Click the Icon to Assign a CSF Audit.
	Send to Contractor	Available from 5.3.0.0 Click to send the Task to Contractor Gateway. The MRI Dreamscape Application Contractor Gateway required. The Send To Contractor button is hidden if the Contractor State of the current Task does not allow a state transition to Sent To Contractor. Available from 6.2.0.0 If the Auto-Create Task Work Order POs preference is set to On Send to Contractor A Task Work Order Purchase Order will be created automatically for the current Task when the Task Status is changed to Sent to Contractor, unless a Purchase Order already exists against the Task. The details of the Purchase Order will depend on the system or Contract preferences for Create Task Work Order PO Lines from Task Actions (if present). Note: If multiple Suppliers are available a drop down list will appear to allow the User to select the required Supplier.
	Remove from Contractor	Available from 5.3.0.0 Click to remove from the assigned Supplier in Contractor Gateway. The MRI Dreamscape Application Contractor Gateway required The Remove from Contractor button is hidden if the Contractor State of the current Task does not allow a state transition to Removed From Contractor
	Status button group	Note: The Statuses shown are dependent upon the current Status of the Task and the State Transitions available, see the table below for the permitted State Transitions.
	Authorise Task	Click to authorise a Task, subject to the relevant Authorisation limit being applied to the current User, or user's Role. Note: This status will not be displayed unless the Use Authorisation Limits for Tasks preference is checked in Task Preferences.
	Mark Task as Active	Click to move the Task back to Active / Assigned - all Resources must be deleted from the Task for the Task to return to status of Active. Available from 6.2.0.0 If the Auto-Create Task Work Order POs preference is set to On Activation A Task Work Order Purchase Order will be created automatically for the current Task when the Task Status is changed to Active, unless a Purchase Order already exists against the Task. The details of the Purchase Order will depend on the system or Contract preferences for Create Task Work Order PO Lines from Task Actions (if present).
	Mark Task as Complete	Click to move the Tasks status to Complete. Available from 6.2.0.0 If the Auto-Create Task Work Order POs preference is set to On Completion A Task Work Order Purchase Order will be created automatically for the current Task when the Task Status is changed to Complete from Active or Assigned, unless a Purchase Order already exists against the Task. The details of the Purchase Order will depend on the system or Contract preferences for Create Task Work Order PO Lines from Task Actions (if present). Note: This button is hidden for Tasks that have a status of REJECTED, HISTORY or CANCELLED.
	Sign Task off to History	Click to move the Tasks status to History.
	Cancel Task	Click to Cancel the Task. Note: The capability to restore Cancelled Tasks was added in Version 4.4.7
	Pause Task	Click to Pause the Task - ISM Module only.
	Restart Task	Click to Restart the Task - ISM Module only.
	Restore Task	Available from 5.5.0.0 Click to Restore the Task to the State it was prior to being sent to Rejected, History or Cancelled.
	Actions button group
	Copy	Click to create a copy of the Task.
	Bulk Copy	Click to create multiple copies of the Task.
	Create Return Route Task	Click to book a Return Route portering Task - ISM Module only.
	Create Scheduled Task	Available from 5.7.0.0 Click to create a Scheduled Task Template from this Task. This button will only be displayed when the Task Scheduler Module licence is present. This button will only be available for existing Breakdown Tasks and only if the Instruction Set linked to the current Task supports use for Scheduled Tasks. It is not available when creating a new Task. When clicked the system will launch the page to create a new Scheduled Task Template, passing the details of the current Task.
	Create Work Permit	Click to raise a Work Permit against the Task - for more information see Work Permits.
	Recalculate Costs & Time	Click the Icon to recalculate a draft Invoice with updated Costs and Time - Sales Invoicing Module required.
	Take Ownership	Click to become the Owner of the current Task
	Assign Ownership	Available from 5.6.0.0 Click to Assign ownership of the current Task to another user. This button will only be displayed if the Allow users to assign ownership of Tasks to other Accounts Task Preference is set to True. A pop up will be displayed, containing two fields: Assign to: - List of values from Accounts The list is subject to a Query defined in the Restrict Accounts by Query Task Preference. If no Query is defined, all active Accounts are displayed Comments - It is likely that the comments would be used as 'handover' notes for the person you are giving ownership to This is only shown if the Change of Task Owner Task Preference to auto-generate Events is enabled
	View Event Map	Available from 5.7.1.0 Click the View Event Map button to open the map window for the current Task. The map displays pins related to the GPS co-ordinates, where present, of the Building the Task is taking place in and the Evolution Go Resource(s) assigned to the current Task, at the point that they carry out actions in the activity, as Task Events or Time Record Events linked to the current Task. Available from 5.9.0.0 The View Event Map pop up window has been updated so that when it opens, the centre point of the map is determined from the longitude and latitude of the Building where the Task is taking place, where present against the Building, if not present the centre point is based on the Default Latitude and Default Longitude values set in the system preferences for Evolution Go Server Details. Note: This new toolbar button will only be available when the Evolution Go Data Publishing purchase key is present.
	Task Broadcast On/Off	Available from 5.7.0.0 The Task Broadcast toolbar buttons will not be displayed if the Broadcast Status of the Instruction Set (selected in the Problem field) for the current Task is set to Never Broadcast. When the toolbar buttons are displayed, click to toggle on or off the Broadcast status of the Task: Tasks with Broadcast turned on will appear in the Building Feed of the MRI Dreamscape @yourService app The Building Feed will be updated with Task Status changes and selected Events from the Tasks with Broadcast turned on Likely scenarios for this feature are: Informing the @yourService user about PPMs or Scheduled Tasks that are happening in their Building Letting people know about faults that affect everyone, such as a spillage in a communal area, or even giving them advance warning of a fire alarm test Changing the Task Broadcast on or off will automatically create a Task Event against the current Task if the Change of Broadcast Status Task Preference is set to true. Note: All new buttons and functionality for Broadcast are only visible when the At Your Service Purchase Key is present.
	Preferences button group
	User Preferences	Available from 5.7.0.0 Click to access Helpdesk User Preferences. The page opened is a modified version of the existing User Task Preferences page that will allow Users to define: Duplicate Task check criteria Tab Order User Defined Available from 6.0.1.0
	Resource On / Off Duty	Click to log Resources on / off duty - ISM Module only.

Tasks - Permitted State Transitions

From State	To State	From State	To State
Active	Unauthorised	History	Prebooked
Prebooked	Unauthorised	History	Scheduled
Assigned	Unauthorised	Cancelled	Scheduled
Complete	Unauthorised	Active	Complete
Scheduled	Unauthorised	Assigned	Complete
Requested	Unauthorised	History	Complete
Cancelled	Unauthorised	Scheduled	Complete
History	Unauthorised	Prebooked	Complete
Requested	Active	Cancelled	Complete
Cancelled	Active	Prebooked	History
History	Active	Scheduled	History
Unauthorised	Active	Unauthorised	History
Complete	Active	Complete	History
Assigned	Active	Active	History
Scheduled	Active	Assigned	History
Prebooked	Active	Rejected	Requested
Prebooked	Assigned	Requested	Rejected
Scheduled	Assigned	Unauthorised	Cancelled
Unauthorised	Assigned	Active	Cancelled
Complete	Assigned	Assigned	Cancelled
Active	Assigned	Complete	Cancelled
History	Assigned	Scheduled	Cancelled
Cancelled	Assigned	Prebooked	Cancelled
Cancelled	Prebooked

Tasks Payment Application States - Permitted State Transitions

Available from 6.3.1.0

From State	To State
Not Required	Draft
Draft	Submitted
Submitted	Approval Required
Submitted	Approved
Submitted	Returned
Submitted	Referred
Submitted	Rejected
Approval Required	Approved
Approval Required	Returned
Approval Required	Referred
Approval Required	Rejected
Returned	Submitted
Returned	Approval Required
Returned	Approved Rejected
Returned	Cancelled
Returned	Complete
Approved	Draft
Approved	Approval Required
Approved	Approved
Referred	Returned
Referred	Rejected
Referred	Cancelled
Cancelled	Draft
Complete	Draft
