Asbestos Register

Available from 6.5.0.0

The Asbestos Register grid allows users to view and maintain the Asbestos Containing Materials that are known to exist or have been discovered during an Asbestos Survey.

Some examples of Asbestos Containing Materials:

Building Materials:

Asbestos cement products (e.g., roofing sheets, siding, pipes)
Floor tiles (e.g., vinyl, asphalt)
Textured coatings (e.g., sprayed fireproofing)
Insulation (e.g., pipe lagging, boiler insulation)
Ceiling tiles

Other Materials:

Gaskets and packing
Automotive brakes and linings
Electrical insulation
Textiles (e.g., fire curtains, oven gloves)
Some adhesives and sealants

Friable vs. Non-Friable:

Friable: Loose and can be crumbled easily, posing a greater risk of fibre release when disturbed.
Non-Friable: Solid and rigid, less likely to release fibres.

Events and Documents related to the Asbestos Containing Materials can be added and viewed here.

Facilities > Asbestos Register

The link will open the Asbestos Register grid. It is a grid view which can be searched, sorted and customised as normal.

Grid Details

Click to view more detail

Grid Icons	Feature	Description
/	View / Add Events	Left clicking on the icon will produce a pop up window showing Events, there is also a hyper-link within the pop up window to add Events.
/	View / Add Documents	Left clicking on the icon will produce a pop up window showing attached Documents, there is also a hyper-link within the pop up window to add Documents.
	View / Edit ACM	Left clicking on the icon will open the Asbestos Containing Material record.
	Material Score	Visual indicators to display the calculated Asbestos Material Score values directly in the grid: Very Low - 0 - 3 Low - 4 - 6 Medium - 7 - 9 High - 10 and above
	Priority Score	Visual indicators to display the calculated Asbestos Priority Score values directly in the grid: Very Low - 0 - 8 Low - 9 - 13 Medium - 14 - 17 High - 18 and above
	Risk Score	Visual indicators to display the calculated Asbestos Risk Score values directly in the grid: Very Low - 0 - 11 Low - 12 - 19 Medium - 20 - 26 High - 27 and above

Click the New toolbar button. A pop up window will appear, allowing the addition of an Asbestos Containing Material record.

To edit an existing Asbestos Containing Material highlight the record in the grid and click Edit.

Select a record in the grid and click the Report toolbar button to open the ACM-001 Asbestos Containing Materials report for the selected record.

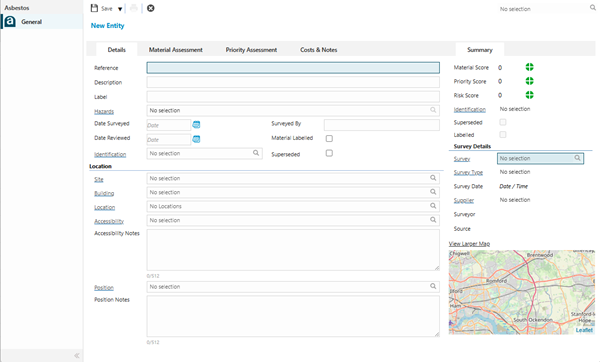

Input Panel Tabs

Click to view more detail

Click to view - Details Tab Fields and Descriptions

Field Name	Description
Reference	Mandatory free format field to contain the identifying reference of the ACM.
Description	Free format field to enter a description of the ACM.
Label	Free format field to enter details of an ACM warning label applied.
Hazard	Read only field to display details of a Hazard linked to the ACM. The field label is a hyper link to open the linked Hazard record directly.
Date Surveyed	Field that contains the date and time the Survey is to take place, or has taken place.
Surveyed By	Free type field to contain the name of the person carrying out the Survey.
Date Reviewed	Field that contains the date and time the results of the Survey has been reviewed.
Material Labelled	Checkbox to indicate that a warning label has been applied to the ACM.
Identification	Select an appropriate Identification Level for the ACM from the dropdown.
Superseded	Read only checkbox to indicate whether the ACM has been superseded by a safer alternative.
Location
Site	Select an appropriate Site for the ACM from the dropdown.
Building	Select an appropriate Building for the ACM from the dropdown.
Location	Select an appropriate Location for the ACM from the dropdown.
Accessibility	Select an appropriate Accessibility for the ACM from the dropdown.
Accessibility Notes	Free format field to contain appropriate notes related to the Accessibility of the ACM.
Position	Select an appropriate Position for the ACM from the dropdown.
Position Notes	Free format field to contain appropriate notes related to the Position of the ACM.

Click to view - Material Assessment Tab Fields and Descriptions

Field Name	Description
Material Score	Read only field to display the calculated Asbestos Material Score value: Very Low - 0 - 3 Low - 4 - 6 Medium - 7 - 9 High - 10 and above
Material Assessment
Asbestos Type	Select an appropriate Asbestos Type for the ACM from the dropdown.
Product Type	Select an appropriate Product Type for the ACM from the dropdown.
Product	Select an appropriate Product for the ACM from the dropdown.
Amount	Free format field to contain the amount of ACM present.
Condition	Select an appropriate Condition for the ACM from the dropdown.
Surface Treatment	Select an appropriate Surface Treatment for the ACM from the dropdown.
Condition Notes	Free format field to contain appropriate notes related to the Condition of the ACM.
Surface Treatment Notes	Free format field to contain appropriate notes related to the Surface Treatment of the ACM.

Click to view - Priority Assessment Fields and Descriptions

Field	Description
Calculated Priority Score	Read only field to display the calculated Priority Score value: Very Low - 0 - 8 Low - 9 - 13 Medium - 14 - 17 High - 18 and above
Calculated Material Score	Read only field to display the calculated Material Score value: Very Low - 0 - 3 Low - 4 - 6 Medium - 7 - 9 High - 10 and above
Risk Assessment Score	Read only field to display the calculated Risk Assessment Score value: Very Low - 0 - 11 Low - 12 - 19 Medium - 20 - 26 High - 27 and above
Risk Adjustment	Field to allow users to make a manual adjustment to the Risk Assessment.
Exposure Risk
Average time area is in use	Select the most appropriate value for the ACM from the dropdown.
Frequency of use of area	Select the most appropriate value for the ACM from the dropdown.
Number of occupants	Select the most appropriate value for the ACM from the dropdown.
Likelihood of Disturbance
Accessibility	Select the most appropriate value for the ACM from the dropdown.
Extent	Select the most appropriate value for the ACM from the dropdown.
Location	Select the most appropriate value for the ACM from the dropdown.
Maintenance Activity
Frequency of maint activity	Select the most appropriate value for the ACM from the dropdown.
Type of maint activity	Select the most appropriate value for the ACM from the dropdown.
Occupant Activity
Main type of activity in area	Select the most appropriate value for the ACM from the dropdown.
Secondary activities for area	Select the most appropriate value for the ACM from the dropdown.

Click to view - Costs & Notes Fields and Descriptions

Est. Removal Cost	Fiscal field to show the estimated cost to remove the ACM.
Est. Containment Cost	Fiscal field to show the estimated cost to contain the ACM.
General Notes	Free format field to enter any general notes relevant to the ACM.
Extent Notes	Free format field to enter any relevant notes as to the extent of the ACM.
Sample Notes	Free format field to enter any notes relevant to the ACM sample.
Sample Taken	Check box to indicate whether a sample was taken of the ACM.

Complete the fields and click Save .

Click the Report toolbar button to open the ACM-001 Asbestos Containing Materials report for the current record.

The State of the ACM record can be changed by clicking the Status button group and selecting an appropriate value from the following options:

Presumed
Confirmed
Not Present
Removed
History

The user will be presented with a popup to add comments and these will be added to a State Change Event against the ACM record.

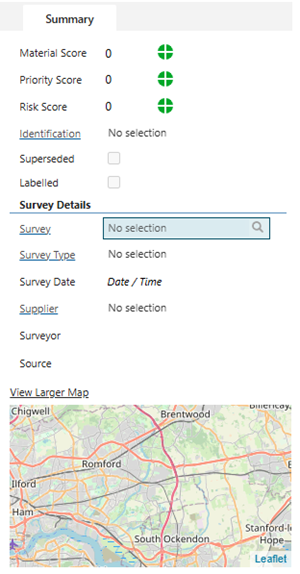

Summary Side Panel

Click to view more detail.

Field	Description
Material Score	Read only field to display the calculated Material Score value: Very Low - 0 - 3 Low - 4 - 6 Medium - 7 - 9 High - 10 and above
Priority Score	Read only field to display the calculated Priority Score value: Very Low - 0 - 8 Low - 9 - 13 Medium - 14 - 17 High - 18 and above
Risk Score	Read only field to display the calculated Risk Assessment Score value: Very Low - 0 - 11 Low - 12 - 19 Medium - 20 - 26 High - 27 and above
Identification	Read only field containing the selected Identification Level in the Details tab.
Superseded	Read only checkbox with the same value as the Superseded field in the Details tab.
Labelled	Read only checkbox with the same value as the Labelled field in the Details tab.
Survey Details
Survey	Select the appropriate Asbestos Survey for the ACM from the dropdown.
Survey Type	Read only field that is auto-populated with the value defined against the selected Asbestos Survey above.
Survey Date	Read only field that is auto-populated with the value defined against the selected Asbestos Survey above.
Supplier	Read only field that is auto-populated with the value defined against the selected Asbestos Survey above.
Surveyor	Read only field that is auto-populated with the value defined against the selected Asbestos Survey above.
Source	Read only field that is auto-populated with the value defined against the selected Asbestos Survey above.
