Element Classification Groups

Available from 6.5.0.0

Using combinations of Element Classification Groups and Element Classifications records, users can re-create the structure defined in an existing building classification system or create their own bespoke classification system.

The most prominent example of a classification system for all sectors of the UK construction industry is Uniclass 2015 but there are similar ones such as Omniclass and UniFormat in the U.S. and Canada.

For example, a Uniclass system for roofs is arranged in groups with subgroups which are sub divided, which leads to the final object code. For instance:

Code	Name/Description	MRI Evolution Classification Level
SS_30	Roof, floor and paving systems	Element Classification Group
SS_30_10	Pitched, arched and domed roof structure systems	Element Classification - Level 1 - Parent
SS_30_10_30	Framed roof structure systems	Element Classification - Level 2 - Child
SS_30_10_30_25	Heavy steel roof framing systems	Element Classification - Level 3 - Grandchild

Element Classification Groups and Element Classifications can be linked to existing Asset Classification records.

The list of Element Classification Groups are maintained here.

Settings > Property and Estates > Element Classification Groups

The link will open the Element Classification Group Grid. It is a grid view which can be searched, sorted and customised as normal.

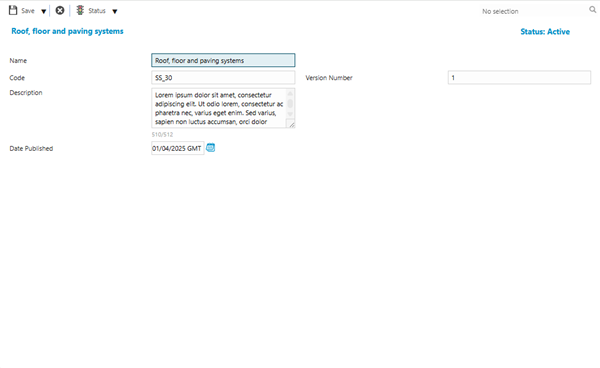

To add a new Element Classification Group click New , to edit an existing Element Classification Groups click Edit .A pop up window will appear which will allow the creation or amendment of a Element Classification Groups

Click to view - Element Classification Group Fields and Description

Field Name	Description
Name	Enter an appropriate name for the Element Classification Group.
Code	Optionally, enter a code for the Element Classification Group.
Version Number	Optionally, enter a version number for the Element Classification Group.
Description	Optionally, enter an appropriate description for the Element Classification Group.
Date Published	Optionally, enter a date the Element Classification Group was published - This date is for reference only.

Complete the fields and click Save and Close .
