Excitech Settings

Available from 4.4.5

The Excitech Settings input panel allows MRI Evolution to store the set up URL s and configuration parameters for calling the Excitech FX360 Map API.

Excitech settings will be configured by MRI Software and the system administrator on install.

System Administration > System Preferences > Excitech Settings

The link will open the Excitech Settings grid. It is a grid view which can be searched, sorted and customised as normal.

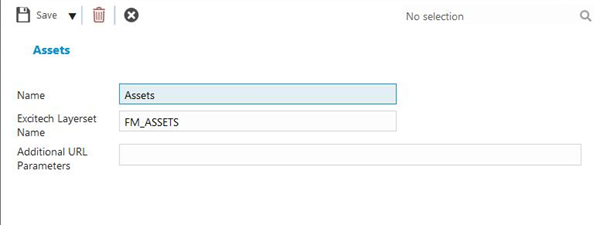

To add a new Excitech Layerset click New , to edit an existing Excitech Layerset click Edit . A pop up window will appear which will allow the creation or amendment of a Excitech Layerset.

Click to view - Excitech Settings Fields and Descriptions

Field Name	Description
Name	The name of the Excitech Setting.
Excitech Layerset Name	The name of the Excitech Layerset .
Options	Advanced feature to specify zoom level.

Complete the fields and click Save and Close .



Default settings can be specified so that entities that have not been connected to a Layerset will be auto-populated. . From the Excitech Setting Grid highlight and click Configure Layerset .

Click to view - Excitech Settings Configuration Fields and Descriptions

Field Name	Description
URL	Enter the URL for link to Excitech System.
Location Default	From the drop down select the default Excitech Layerset.
Asset Default	From the drop down select the default Excitech Layerset.
Helpdesk Widget Default	From the drop down select the default Excitech Layerset.

Complete the fields and click Save .
